MyApp — A Guided Walkthrough of a Generated Tentackle Application

This document walks, end to end, through the example application produced by tentackle-project-archetype. It is written for a developer who is new to Tentackle and wants to understand how a real, runnable Tentackle application is laid out, how its layers fit together, and where to look when adding features of their own.

The companion document tentackle-project-archetype.md explains the archetype (the Velocity templates and how generation works). This document instead treats the generated project as a reference application and reads it like production code.

The walkthrough follows the project generated with -DartifactId=myapp -Dpackage=com.example.myapp -Dapplication=MyApp, i.e., the one the archetype's own integration test materializes under tentackle-project-archetype/target/test-classes/projects/myapp/project/myapp. Throughout, file paths are given relative to that generated project root (e.g. myapp-pdo/src/main/java/com/example/myapp/pdo/md/User.java).

---

1. What the application is

MyApp is a small but complete multi-tier business application. Out of the box it gives you:

• a domain of Users, User Groups, a User↔Group N:M link, an Organizational Unit base entity, and a Message log;
• a JavaFX desktop client with login, CRUD editors, search/finders, preferences, theming, an about box, an auto-updater, and a security-administration UI;
• a middle-tier server speaking TRIP (Tentackle's RMI/JOS replacement) that also hosts the software auto-update service;
• a headless console daemon that listens for new Messages and logs them;
• jlink/jpackage packaging for all three runnables;
• full JPMS module declarations, i18n in English and German, role-based security, and a TestNG test suite running against an in-memory H2 database.

It demonstrates the framework's central idea — the Persistent Domain Object (PDO) — together with the code generation, remoting, UI, and build machinery that surround it.

---

2. The module map

MyApp is a Maven reactor of eight library/application modules plus a jlink sub-aggregator. The root pom.xml is a pom-packaging aggregator that imports tentackle-bom and centralises all plugin configuration in <pluginManagement> so the child modules stay tiny.

myapp (root pom — aggregator + pluginManagement + model defaults)
├── myapp-common        cross-cutting types: Constants, Version, SessionInfo, DomainContext, Cryptor, Locale, Preferences
├── myapp-pdo           PDO *interfaces* (entity + domain facet + persistence facet) + the embedded model + security + enums
├── myapp-domain        domain-logic *implementations*            (open module)
├── myapp-persistence   persistence *implementations* + TRIP remote delegates  (open module)
├── myapp-gui           JavaFX RDC controllers, editors, finders, FXML/CSS, images  (open module)
├── myapp-client        the desktop FX client application
├── myapp-server        the middle-tier TRIP server + update service
├── myapp-daemon        the headless console client
└── jlink               jlink/jpackage images (only built under the "jlink" profile)
    ├── client
    ├── server
    └── daemon

Layering and JPMS

Every module has an explicit module-info.java. The dependency edges encode Tentackle's architecture and, crucially, keep the persistence and domain layers from knowing about each other — they only share the PDO interfaces.

Module	key requires	open?	Role
…common	transitive org.tentackle.pdo	no	base types shared by everything
…pdo	transitive …common	no	the PDO interfaces that define the model; exports …pdo, …pdo.md, …pdo.td, the .domain/.persist facet packages, and …pdo.security
…domain	transitive …pdo, transitive org.tentackle.domain	yes	domain-logic implementations (UserDomainImpl, MessageDomainImpl, …)
…persist	transitive …pdo, transitive org.tentackle.persistence	yes	persistence implementations + TRIP remote delegates
…gui	transitive …pdo, transitive org.tentackle.fx.rdc, org.tentackle.fx.atlanta	yes	FX controllers, editors, providers, FXML/CSS
…client	transitive …gui, …persist, …domain, transitive org.tentackle.fx.rdc.update	no	the desktop application
…server	transitive …persist, …domain, transitive org.tentackle.update	no	the middle-tier server
…daemon	transitive …persist, …domain	no	a headless console client

The domain, persistence, and gui modules are open module because the framework reflects into them: TRIP serialises PDO state, JavaFX/FXML instantiates controllers, and the proxy-based PDO assembly (below) needs reflective access to the implementation classes.

Notice that …client, …server and …daemon each pull in both …persist and …domain. A running JVM needs both implementation layers; only the compile-time code in …pdo is shared, and neither implementation module requires the other. See Common / Services & Configuration and the modules overview for the framework-level rationale.

The module-hook SPI

Every module declares

provides org.tentackle.common.ModuleHook with com.example.myapp.<module>.service.Hook;

service/Hook.java is a minimal class implementing ModuleHook (it forwards getBundle(...) to ResourceBundle.getBundle). This is the SPI entry point through which the framework's ServiceFinder discovers and initializes each module — the mechanism that lets the same code run modular or non-modular without change. When you add a module, copy this one-class pattern.

---

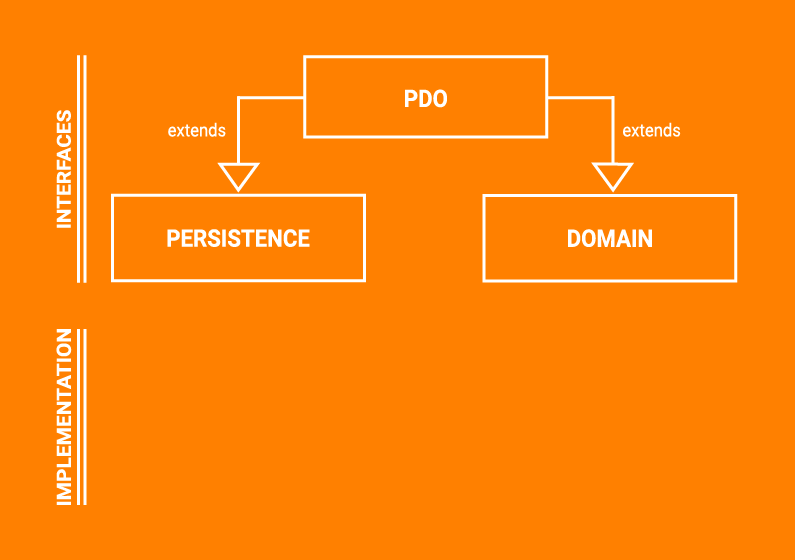

3. The heart of it: the PDO pattern

Read alongside PDO — Persistent Domain Objects and PDO vs. ORM.

A PDO is a single logical entity that Java cannot express directly because it needs two independent implementation inheritance chains — one for persistence, one for domain logic. Tentackle emulates that multiple inheritance with a dynamic proxy that fronts a PersistentObject and a DomainObject working in tandem.

For each entity there are (at least) five Java types, plus generated SQL. Take Message:

Artifact	File	Hand-written?
PDO interface	myapp-pdo/.../pdo/td/Message.java	yes — and carries the model
Persistence facet	myapp-pdo/.../pdo/td/persist/MessagePersistence.java	partly — generated accessors woven in
Domain facet	myapp-pdo/.../pdo/td/domain/MessageDomain.java	yes — extra business methods
Persistence impl	myapp-persistence/.../persist/td/MessagePersistenceImpl.java	yes + generated regions
Domain impl	myapp-domain/.../domain/td/MessageDomainImpl.java	yes
Remote delegate (+impl)	myapp-persistence/.../persist/td/trip/MessageRemoteDelegate*.java	generated
SQL/DDL & mapping	under target/wurbel/model	generated

The PDO interface is where you, the developer, live. It extends its persistence facet, its domain facet, and a shared base interface:

public interface Message extends TransactionData<Message>, MessagePersistence, MessageDomain {
  ...
}

• MessagePersistence (extends PersistentObject<Message>) gives you generated typed getters/setters (getMessageNumber(), setText(...), relation accessors) plus hand-declared persistence operations like nextMessageNumber() and findBy(...).
• MessageDomain (extends DomainObject) declares business operations: create(...), getRefersToPdo(), getFormattedRefersTo(), toDiagnosticString().
• TransactionData<T> / MasterData<T> (in myapp-pdo) are thin project-wide marker bases extending PersistentDomainObject<T>. They let you attach behavior or constraints to whole categories of entity. The split mirrors the two wizard profiles (masterdata, class ids ≥ 1000; transactiondata, class ids ≥ 2000).

How an instance is assembled

You never call a constructor. You ask the factory:

Message m = Pdo.create(Message.class, context);   // a live, empty PDO bound to a domain context

Pdo.create returns a proxy implementing Message. Calls that belong to the persistence facet are routed to a MessagePersistenceImpl; calls on the domain facet go to a MessageDomainImpl. Inside an implementation, me() returns the proxy (so a domain method can call persistence methods and vice-versa) and getDomainContext() yields the ambient context. You can see both halves cooperating in MessageDomainImpl.create(...):

me().setMessageType(messageType);
…
me().setOrgUnit(owner);
me().setWhen(new Timestamp());
me().setMessageNumber(me().nextMessageNumber());   // persistence facet
return me().persist();                              // write through

The implementations are wired to their PDO class by annotations the framework discovers via the service SPI: @PersistentObjectService(Message.class) on MessagePersistenceImpl and @DomainObjectService(Message.class) on MessageDomainImpl.

Aggregates are first-class

User and UserGroup both extends OrgUnit, which uses multi-table inheritance (inheritance := multi in the model). User2Group is the N:M link, and User/UserGroup each expose it as a component list (relation = component list). Because Tentackle models aggregates explicitly, a component always knows its root without a query and DDD invariants are enforced by the persistence layer. See the User.java model block in §4 and the persistence docs.

Remoting is transparent

Because the persistence layer is remoting-capable, every PDO method works in any JVM — directly connected to the database (server) or remote over TRIP (client, daemon). There is no LazyInitializationException in Tentackle: a relation accessor simply executes wherever it must. The …RemoteDelegate classes under each trip package are the generated plumbing that carries method calls across the wire. This is why all three runnables can share the identical contract:

@Override public User getUser(DomainContext context, long userId) {
  return Pdo.create(User.class, context).selectCached(userId);
}

---

4. The embedded model — reading the entity comment blocks

Reference: Model definition and the persistence wurblets.

The model is authored in special comment blocks inside the PDO interface, and code generation reads it from there. There are two kinds of block, both visible at the top of OrgUnit.java:

/*
 * @{                                  <-- a "definitions" block: local variables for this file
 * tablename = md.orgunit
 * mapping   = $model/$tablename.map
 * @}
 */

/*
 * @> $mapping                          <-- a "wurble into file $mapping" block: the actual model
 *
 * # Organizational Unit
 * name := $classname
 * table := $tablename
 * inheritance := multi
 * integrity := $integrity
 *
 * ## attributes
 * [cached, tokenlock | +name]
 * String($ou_name)    name      name      short name [key, uc, normtext]
 * String($ou_comment) comment   ocomment  optional comment [normtext]
 *
 * ## indexes
 * unique index udk := name
 *
 * ## relations
 *
 * ## validations
 * name: @NotNull(message="{ @('please enter the name') }")
 * @<
 */

Things to note for a newcomer:

• attributes are declared as JavaType(size) attributeName column_name description [modifiers]. Modifiers in brackets drive generation: key (part of the domain key), uc/normtext (uppercase / normalized search text), cached, tableserial, trimwrite, @NotNull (a bean-validation constraint), [MUTE] (excluded from the PDO — see the password below), etc.
• $ou_name, $ou_comment, $msg_text… are column sizes defined centrally in the root pom.xml (<wurbletProperties>), so the whole model's field widths are tuned in one place.
• extends := OrgUnit in User.java/UserGroup.java produces the multi-table inheritance.
• relations declare aggregation. User's block declares the component list nmLinks over User2Group with the N:M shortcut nm = UserGroup UserGroups, which is what gives User.getUserGroups().
• @ClassId assigns a stable numeric class id (1001 User, 1002 UserGroup, 1003 User2Group, 2001 Message). Class ids are how PDOs are identified across the wire and in the Message.refersToClassId polymorphic reference.

A subtle, instructive detail: User's password attribute is declared [MUTE], so the hash column exists in the table but is not part of the User PDO. The hash is read/written only through dedicated persistence operations (selectPasswordHash(), updatePasswordHash(...)), keeping it off the wire — see the login flow in §8.

@TableName(...) and @ClassId(...) carry /*@*/ … /*@*/ markers; the Inject wurblet keeps those literals in sync with the model variables. The // @wurblet … comments are guarded regions — read on.

What the generator makes of it: the model comment

The model block above is your input. To see what the tooling understands from it, look just inside the interface body, where the modelComment ModelComment wurblet weaves a read-only summary of the entity's place in the model. In OrgUnit.java it expands to:

public interface OrgUnit<T extends OrgUnit<T>> extends MasterData<T>, OrgUnitPersistence<T>, OrgUnitDomain<T> {

  // @wurblet(fold=expanded) modelComment ModelComment

  //<editor-fold defaultstate="expanded" desc="code 'modelComment' generated by wurblet ModelComment">//GEN-BEGIN:modelComment

  /*
   * -----------------------------------------------------------------------------------------------------------------
   *
   * OrgUnit is referenced by:
   *
   * Message via orgUnitId as orgUnit [1:1]
   *
   *
   * OrgUnit is a root entity
   *
   *
   * OrgUnit is not referencing other entities
   *
   *
   * Components of OrgUnit are not deeply referenced
   *
   *
   * OrgUnit is extended by:
   *    ^ User
   *    ^ UserGroup
   *
   * -----------------------------------------------------------------------------------------------------------------
   */

  //</editor-fold>//GEN-END:modelComment

This block is generated, not authored: the Wurbelizer resolves the whole model — including relations declared in other files — and reflects each entity's incoming references, root/aggregate status, outgoing references, and inheritance back into its own source. Here it tells you, at a glance, that OrgUnit is referenced by Message's orgUnit, is an aggregate root referenced by nothing further, references nothing itself, and is the multi-table base of User and UserGroup (the ^ arrows). Because it lives right where you read the code, it keeps the model's cross-file structure visible without chasing it through the other PDO sources — and it is your first concrete sight of a guarded region, the mechanism the next section is about.

---

5. Code generation: wurblets and guarded regions

Reference: Wurblets, persistence wurblets, pdo-select.

Tentackle does not generate code into separate files you must not touch. Instead it weaves generated code into guarded regions inside your own source files. A guard looks like a comment marker; the Wurbelizer replaces the region's body on each build, while leaving your hand-written code between regions untouched. In MessagePersistenceImpl.java you can see the seams:

// @wurblet classVariables ClassVariables
// @wurblet columnNames ColumnNames
// @wurblet declare Declare
…
// @wurblet methods MethodsImpl
// @wurblet relations PdoRelations

Each // @wurblet <name> <Wurblet> invokes a named generator. So MessagePersistence (the facet interface) gets its typed getXxx/setXxx and AN_*/CN_* constant names from AttributeNames/Methods/ColumnLengths wurblets, while MessagePersistenceImpl gets the JDBC column plumbing — and you fill in the rest (nextMessageNumber(), findBy(...)) by hand, using framework helpers like Query, NormText and NumberSourceFactory.

The generators are selected per file-type by the <filesets> in the root pom.xml's wurbelizer-maven-plugin configuration: entity interfaces, facet interfaces, implementations, and trip delegates each get their appropriate wurblets. The build order that makes this work is:

1. tentackle-maven-plugin analyze/test-analyze — emit service descriptors and analysis metadata.
2. wurbelizer-maven-plugin wurbel/test-wurbel — run the wurblets, weave the guarded regions, and emit the model under target/wurbel/model.
3. tentackle-sql-maven-plugin — turn the model into DDL for the td and md schemas (with migration hints).
4. tentackle-check-maven-plugin bundles/validations — verify i18n completeness (en_US, de_DE) and Groovy validation scripts.
5. tentackle-i18n-maven-plugin — i18n resource handling.
6. maven-compiler-plugin — compile with the framework annotation processors (tentackle-core, tentackle-pdo, tentackle-fx, tentackle-fx-rdc) on the processor path.
7. tentackle-jlink-maven-plugin — build native images under the jlink profile.

The same pipeline, with each step's own document, is summarized in tentackle-project-archetype.md §"The Generated Build Pipeline".

---

6. The common module — cross-cutting plumbing

myapp-common holds the small classes every layer needs. Most are thin subclasses of framework defaults registered as services (@Service(...)), so the framework picks them up automatically:

Class	Extends / implements	Why it exists
MyAppSessionInfo	DefaultSessionInfo	login credentials + connection params; here it forces usernames to uppercase
MyAppSessionInfoFactory	@Service(SessionInfoFactory)	builds MyAppSessionInfo from username/password/properties
MyAppDomainContext	DefaultDomainContext	the per-call context; narrows getSessionInfo() to MyAppSessionInfo
MyAppDomainContextFactory	@Service(DomainContextFactory)	builds MyAppDomainContext
MyAppCryptor	@Service(Cryptor.class)	app-specific symmetric encryption (salt + passphrase) for stored secrets
MyAppLocaleProvider	@Service(LocaleProvider.class)	restricts supported locales to en (default) and de
MyAppPreferences	—	typed access to persisted system/user preferences (e.g. the help URL)
Version	—	reads version/date from a filtered Version.properties baked at build time
Constants	—	app constants such as the number-pool realm "MyApp"

The SessionInfo / DomainContext pair is worth internalizing early:

• A SessionInfo describes who is connecting and how (user, password, backend properties). MyAppSessionInfo uppercases usernames because the model declares the OrgUnit.name key as uc — the two must agree.
• A DomainContext is the ambient handle threaded through every PDO call: it carries the Session (database or remote connection) and is what you pass to Pdo.create(Clazz.class, context). The FX controllers obtain it via Application.getInstance().getDomainContext() (see MainController.getDomainContext()).

MyAppCryptor deliberately obfuscates its salt/passphrase character-by-character and notes in comments that production deployments should derive the passphrase from an external source. It is the same Cryptor the build uses to encrypt passwords into the jlink images (§11).

---

7. Security — users, groups, and permissions

Reference: Security.

Security lives in myapp-pdo/.../pdo/security:

• MyAppSecurityFactory (@Service(SecurityFactory.class)) plugs in
• MyAppSecurityManager extends DefaultSecurityManager, which implements the user→group role expansion.

When the framework needs to decide whether a grantee (the logged-in user) may do something, determineGranteesToCheck(...) returns the user plus every UserGroup they belong to plus the “all” grantee (0,0). Permissions granted to a group therefore apply to all its members. Two details show real-world care:

• The manager listens with Pdo.listen(this::invalidate, User.class, UserGroup.class) and rebuilds itself whenever a user or group changes — so permission changes take effect live.
• evaluateImpl(...) short-circuits read permission on User/UserGroup/User2Group to “accepted”, which prevents an infinite recursion: expanding a user's groups must itself read users and groups.

The FX MainController consults this in configure() to enable/disable the Security Manager, Sessions and Preferences menu items based on the current user's permissions, and the editors gate actions on pdo.isEditAllowed(), isViewAllowed(), etc.

---

8. The three runnable applications

All three subclass a Tentackle application base class and share the getUser(...) contract from §3. Each main just constructs the application and calls start(args); the base class drives configuration, login, the session lifecycle and shutdown hooks.

8.1 Desktop client — MyAppFxClient

myapp-client/.../client/MyAppFxClient.java extends UpdatableDesktopApplication<MainController>. It declares:

• getApplicationClass() → MyAppLoginApplication (the JavaFX Application that shows the login dialog, with app-specific Login.css / Login-dark.css and a 30-second inactivity timeout);
• getMainControllerClass() → MainController;
• configureMainStage(...) to set the window title and route the window-close button through MainController.exit() (which asks for confirmation);
• configurePreferences() to apply the logged-in user's preference policy (setSystemOnly, setReadOnly) and react to live changes of the help URL.

Being an Updatable… application, it wires in the auto-updater (org.tentackle.fx.rdc.update), which checks the server's update service on startup.

MainController (myapp-gui) is the menu-driven shell: it opens CRUD editors via Rdc.displayCrudStage(on(clazz), …), search dialogs via Rdc.displaySearchStage(...), the preferences dialog, theme switcher, password change, the security-administration dialog, and a server-sessions view. on(clazz) is the controller helper that creates a PDO bound to the controller's domain context.

8.2 Middle-tier server — MyAppServer

myapp-server/.../server/MyAppServer.java extends ServerApplication. Its constructor names the service ("MyAppServer"), passes the build Version.RELEASE, and registers MyAppRemoteDbConnectionImpl as the connection class. After the base startup it calls createUpdateService(), which — if updateService/updateURL properties are set — starts the server-side update service so clients can auto-update to the running version.

The server is the only tier directly connected to the database; clients and the daemon connect to the server over TRIP. This is the classic three-tier topology, and it is configured purely through properties (§10), not code.

8.3 Console daemon — MyAppDaemon

myapp-daemon/.../daemon/MyAppDaemon.java extends ConsoleApplication. It is the smallest end-to-end example of event-driven Tentackle code:

latestMessageId = on(Message.class).selectMaxId();
Pdo.listen(this::logMessages, Message.class);   // fire whenever a Message is committed anywhere

Pdo.listen(...) is the framework's change-notification primitive (the same one the security manager uses). Whenever a Message is persisted — by any JVM connected to the server — every listener is notified, and the daemon prints the new messages. It illustrates that PDO change events, like PDO methods, cross the remoting boundary transparently.

---

9. Remoting and the login lifecycle (TRIP)

Reference: TRIP, session.

The trip packages contain the connection/session classes that make remoting concrete:

• myapp-pdo/.../pdo/MyAppRemoteSession — a marker interface for the app's remote session type.
• myapp-persistence/.../persist/trip/MyAppConnection, MyAppRemoteSession, MyAppRemoteSessionAdapter, MyAppRemoteSessionFactory — the client-side remote-session machinery.
• myapp-server/.../server/trip/MyAppRemoteDbConnectionImpl and MyAppRemoteDbSessionImpl — the server-side endpoint.

The two server classes are where the application's authentication actually happens:

• MyAppRemoteDbConnectionImpl.checkClientVersion(...) rejects clients whose Version.RELEASE differs from the server's — version skew is caught at connect time (VersionIncompatibleException).
• MyAppRemoteDbSessionImpl.verifySessionInfo(...) performs login: it looks up the User by unique domain key (the uppercase username), compares user.hash(password) against user.selectPasswordHash() (recall the hash is [MUTE]d out of the PDO and fetched on demand), enforces isLoginAllowed(), rejects duplicate logins of the same main session (AlreadyLoggedInException), sets the session locale, and logs a LOGIN message.
• closeDb(...) mirrors that on logout / crash, writing a LOGOUT message (annotated as crashed … if the session died). This is the producer side of the events the daemon listens for in §8.3.

Notice how login/logout auditing reuses the very same Message.log(...) PDO that the rest of the app uses — the framework's pieces compose.

---

10. The GUI / RDC layer

Reference: FX RDC and tentackle-fx.

The desktop UI is built with RDC (Rich Desktop Client). For each entity the myapp-gui module follows a small, repeatable trio of artifacts (look at the user, usergroup and message sub-packages):

1. A …GuiProvider annotated @GuiProviderService(Entity.class) — the framework's per-entity UI service. It says what graphic to show, whether an editor/finder exists, how to build them, how the entity appears in trees, and how drag-and-drop behaves. UserGuiProvider, for instance, accepts dropped UserGroups and adds them to the user.
2. A …Editor extending PdoEditor<Entity> annotated @FxControllerService, paired with an .fxml layout and .properties bundles co-located in src/main/java (a Tentackle convention so SceneBuilder finds them by relative path, the project's FXML/FX convention). Fields are wired with @FXML and bound to the PDO with @Bindable + the controller's binder. UserEditor shows a text field, checkboxes, a child UserGroup table with a context menu, and a password button.
3. A …Finder (e.g. MessageFinder) or the framework's DefaultPdoFinder, plus a TableConfiguration describing the search-result columns (see MessageGuiProvider.createTableConfiguration(), which uses the generated AN_*/RN_* attribute-name constants for column ids and bundle keys).

MainController ties it together: menu items call edit(clazz) / search(clazz), which delegate to Rdc.displayCrudStage(...) / Rdc.displaySearchStage(...); the RDC layer then looks up the right GuiProvider, builds the editor or finder, and manages the stage. Theming (light/dark via org.tentackle.fx.atlanta), the about box, preferences dialog, and password-change view round out the shell.

---

11. Internationalisation

Reference: i18n, bundles, internationalization.

Every module that emits user-facing text ships a *Bundle.java accessor and *Bundle.properties / *Bundle_de.properties pairs (PdoBundle, DomainBundle, PersistenceBundle, ServerBundle, GuiBundle, plus the per-view .properties). The MessageType enum even localizes itself via PdoBundle.getString(name()).

Completeness is enforced at build time: the tentackle-check-maven-plugin bundles goal checks that the en_US, de_DE locales are in sync, and the i18n plugin handles the resources. MyAppLocaleProvider narrows the runtime to those two languages with English as fallback. The classes deliberately avoid stray string constants that would trip the i18n checker (see the comment in Version.java).

---

12. Configuration and properties

The runnables are configured by .properties files resolved as resources, selected with a --backend=<name> (client/daemon) or --backend/service argument (server). Two patterns appear:

• backend.properties (client/daemon) points the JVM at a data source. For tests the client uses url=${dbService} (a trip://… server URL), and the daemon uses an H2 in-memory URL. Commented lines show optional auto-login / view-only setups.
• server.properties gives the server its JDBC url/user/password, the TRIP service URL to publish, and a timeout.

The ${…} placeholders are Maven-filtered at build time from properties defined in the root pom.xml (dbUrl, dbUser, dbPasswd, dbService, updateService, updateURL). Filtered resources live under src/(main|test)/filtered-resources; verbatim ones under src/(main|test)/resources. This split is configured once in the root POM's <resources>/<testResources> and inherited everywhere.

Secrets are never stored in clear text in the packaged images: the jlink build encrypts them with MyAppCryptor (see §11 packaging).

---

13. Testing

Reference: persistence and the maven plugins.

The project demonstrates three distinct testing styles:

• Pure domain unit test, no database — myapp-domain/.../domain/td/MessageTest.java. Pdo.create(Message.class) with no context gives a PDO backed by a persistence mock, so you can exercise domain logic (toDiagnosticString()) in isolation. The test's comments also show the Mockito alternative.
• In-memory integration test — myapp-server/.../server/MyAppTestBase.java extends AbstractPdoTest, which spins up an H2 database, runs the generated DDL, and lets populateDatabase() seed a number pool. Subclass it to test against a real (in-memory) schema.
• Runnable harnesses — RunServer, RunClient and FillDatabase are @Test-annotated launchers used during development: RunServer boots the actual server inside the test container (overriding isSystemExitNecessaryToStop() so it doesn't kill the JVM); RunClient launches the FX client (also in a German locale variant); FillDatabase (group initdb, via initdb-testng.xml, run with mvn -Pinitdb test) creates the number pool and seed users GONZO/KERMIT/DAEMON with hashed passwords.

Tests run with the locale forced to US English (-Duser.language=en -Duser.region=US in the surefire config) so that locale-sensitive assertions are stable.

FillDatabase.addUsersAndGroups() is also the clearest worked example of the persist API from the outside: on(User.class), set fields, persist(), then updatePasswordHash(user.hash(...)) — including adding the user to a group via the aggregate relation user.getUserGroups().add(group).

---

14. Packaging — jlink / jpackage

Reference: jlink/jpackage packaging.

The jlink aggregator builds self-contained runtime images for all three runnables, but only under the jlink profile (mvn -Pjlink …). Highlights:

• Each leaf (jlink/client, jlink/server, jlink/daemon) has <packaging>jlink</packaging> — switch a leaf to jpackage to produce a native installer instead. The client declares its mainModule/mainClass (com.example.myapp.client / MyAppFxClient), bundles withUpdater, and adds JDK modules like jdk.localedata.
• The aggregator's tentackle-maven-plugin:properties goal encrypts the DB, certificate and daemon passwords with @org.tentackle.common.Cryptor (i.e. MyAppCryptor) into the filtered resources, so no clear-text secrets are shipped.
• The keytool-maven-plugin generates/imports a TLS certificate; note the secure service URLs in the jlink profile use trips:// and tripe:// (TLS-secured TRIP) rather than the plain trip:// used for local testing.

---

15. Build & run cheat-sheet

# full build (analyze → wurbel → sql → check/i18n → compile → test)
mvn clean install

# build the native images too
mvn -Pjlink clean install

# initialise a CI/dev database with the seed data (FillDatabase, group "initdb")
mvn -Pinitdb test

# run a single test / launcher
mvn -Dtest=RunServer test          # boot the server
mvn -Dtest=RunClient#runClient test# boot the FX client
mvn -Dtest=MessageTest test        # the no-DB domain unit test

A typical first run is: build (mvn install), point server.properties at a real PostgreSQL, generate the schema DDL (produced under target/wurbel/by the sql plugin), seed it (-Pinitdb), start MyAppServer, then start MyAppFxClient against, and log in as one of the seed users.

---

16. How to extend it

• Add an entity. The wizard plugin is pre-configured in the root POM with masterdata / transactiondata / operation profiles (package conventions and class-id ranges) and FreeMarker templates under templates/. It scaffolds the PDO interface, facets, implementations, and remote delegate consistently with the examples. Then author the model block, run mvn install, and add a GuiProvider/Editor if it needs UI.
• Add a business operation that isn't tied to one entity: use the operation profile and the operation pattern.
• Tune the schema: add an attribute
• add an entity: use the PDO wizard

---

17. Where to read next

Topic in MyApp	Framework document
The PDO concept, proxies, Pdo.create	pdo.md · pdo-vs-orm.md
The model comment language	model-definition.md · tentackle-model.md
Code generation / guarded regions	wurblets.md · persistence-wurblets.md · pdo-select.md
Persistence impls, queries, relations	persistence.md · database.md · sql.md
Domain impls	domain.md
Remoting / TRIP	trip.md · session.md
The FX desktop UI	rdc.md · fx.md · atlanta.md
Auto-update	update.md · fx-rdc-update.md
Security	security.md
Services / config / bundles	common.md · services.md · i18n.md
Packaging	jlinkpackage.md
The architecture in the large	modules.md · tiers.md
The archetype itself	tentackle-project-archetype.md
